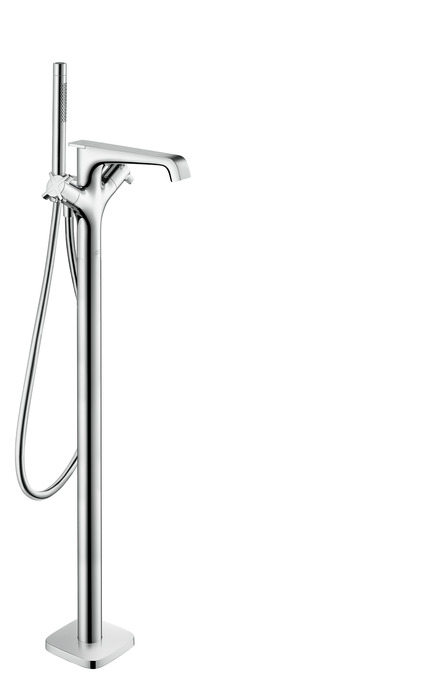

Badkarstermostat Citterio E 1-grepp för golvmontering
- Sg#:
- HG36416000
- RSK:
- 8310357
- Art.nr:
- 36416000
- EAN:
- 4011097751399
Relaterade produkter
Obligatoriska tillbehör
Rekommenderade tillbehör
Produktdata
| Varumärke | Axor |
|---|---|
| Sg# | HG36416000 |
| RSK | 8310357 |
| Art.nr | 36416000 |
| EAN | 4011097751399 |
| Color | Krom |
| Designserie | AXOR Citterio E |
| Kategori | |
| Undergrupp | Bad & Duscharmatur |
| Grupp | Sanitet |

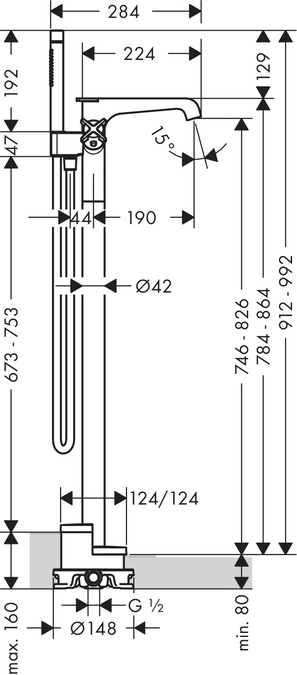

• consists of: bath thermostat floor standing, baton hand shower, shower hose, shower holder
• projection 190 mm
• 2 functions
• diversion between outlets via diverter knob
• thermostat cartridge, ceramic valves 180°
• spray type mixer: laminar spray
• spray type hand shower: Rain, MonoRain
• maximum flow rate at 3 bar: 19 l/min
• flow rate for bath spout at 3 bar: 19 l/min
• flow rate of hand shower at 3 bar: 15 l/min
• min. operating pressure: 1 bar
• max. operating pressure: 10 bar
• Safety stop at 40 °C
• temperature limitation adjustable
• non-return valve
• with automatic resetting
• connection dimension: DN15

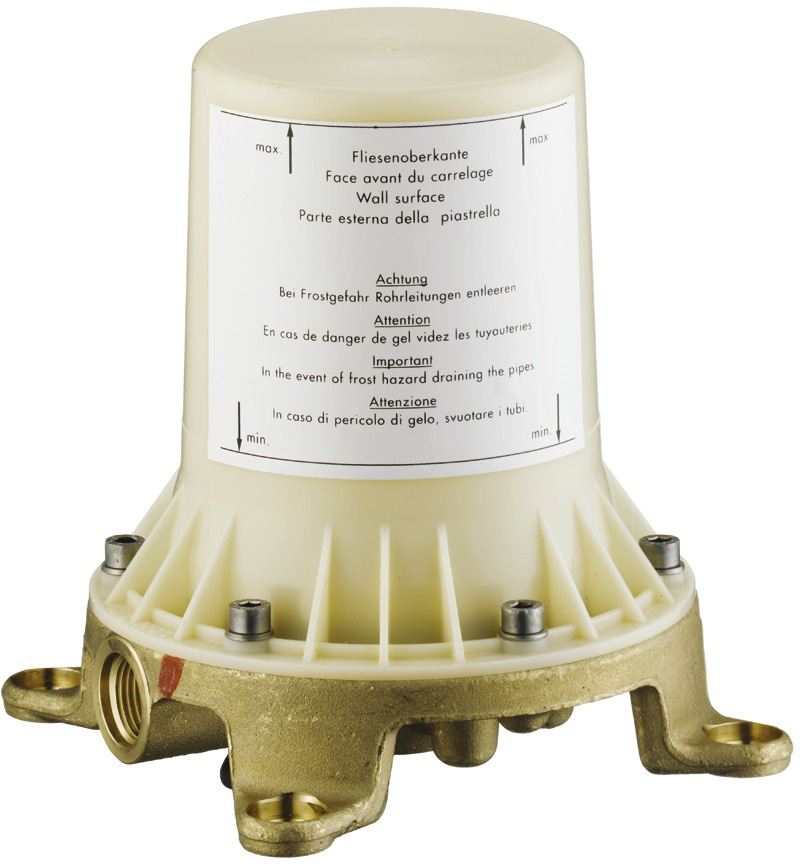

• connection type: basic set
• deck mounted
